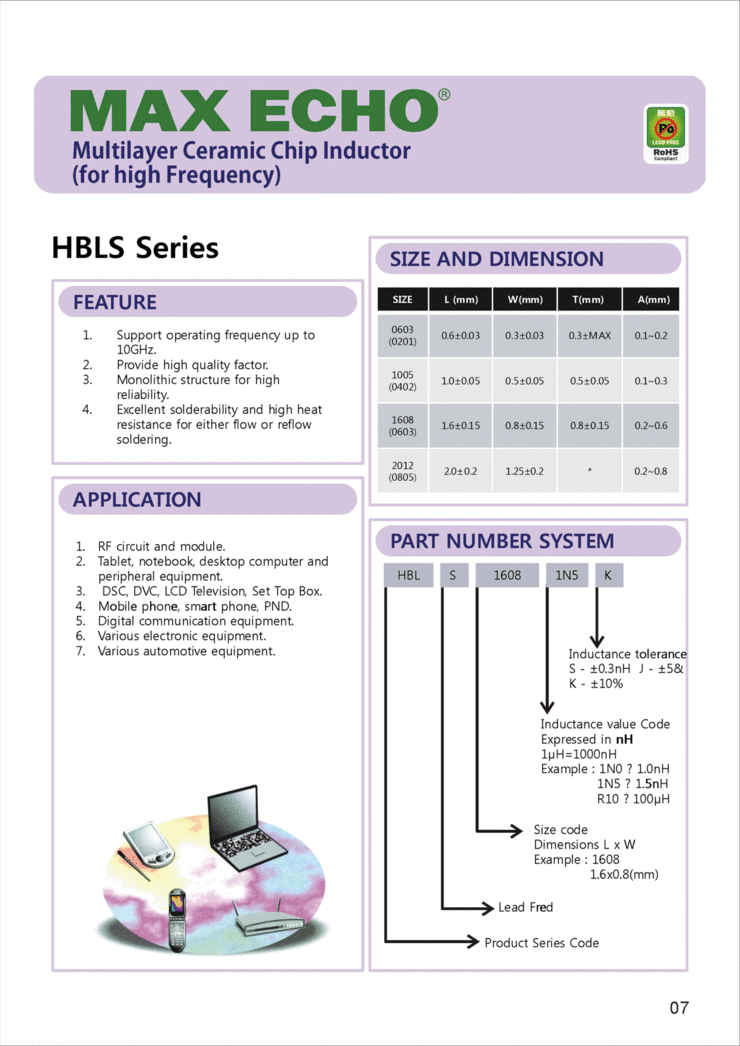

CHIP INDUCTOR [HBLS Series] 1005 SIZE



1005 SIZE

CTC	상품명	Inductance (nH)	Tolerance	DC ResistnceΩ (Max.)	RatedCurrentmA (Max.)	릴수량
CI-B1005-10NSJT	HBLS1005-1N0S	1	±0.3nH	0.08	300	10000
CI-B1005-12NSJT	HBLS1005-1N2S	1.2	±0.3nH	0.09	300	10000
CI-B1005-15NSJT	HBLS1005-1N5S	1.5	±0.3nH	0.1	300	10000
CI-B1005-18NSJT	HBLS1005-1N8S	1.8	±0.3nH	0.12	300	10000
CI-B1005-22NSJT	HBLS1005-2N2S	2.2	±0.3nH	0.13	300	10000
CI-B1005-27NSJT	HBLS1005-2N7S	2.7	±0.3nH	0.13	300	10000
CI-B1005-33NSJT	HBLS1005-3N3S	3.3	±0.3nH	0.16	300	10000
CI-B1005-39NSJT	HBLS1005-3N9S	3.9	±0.3nH	0.21	300	10000
CI-B1005-47NSJT	HBLS1005-4N7S	4.7	±0.3nH	0.21	300	10000
CI-B1005-56NSJT	HBLS1005-5N6S	5.6	±0.3nH	0.23	300	10000
CI-B1005-68NJJT	HBLS1005-6N8J	6.8	±5%	0.25	300	10000
CI-B1005-82NJJT	HBLS1005-8N2J	8.2	±5%	0.28	300	10000
CI-B1005-100JJT	HBLS1005-10NJ	10	±5%	0.31	300	10000
CI-B1005-120JJT	HBLS1005-12NJ	12	±5%	0.4	300	10000
CI-B1005-150JJT	HBLS1005-15NJ	15	±5%	0.46	300	10000
CI-B1005-180JJT	HBLS1005-18NJ	18	±5%	0.55	300	10000
CI-B1005-220JJT	HBLS1005-22NJ	22	±5%	0.6	300	10000
CI-B1005-270JJT	HBLS1005-27NJ	27	±5%	0.7	300	10000
CI-B1005-330JJT	HBLS1005-33NJ	33	±5%	0.8	200	10000
CI-B1005-390JJT	HBLS1005-39NJ	39	±5%	0.9	200	10000
CI-B1005-470JJT	HBLS1005-47NJ RDC1.3	47	±5%	1	200	10000
CI-B1005-560JJT	HBLS1005-56NJ RDC1.1	56	±5%	1	200	10000
CI-B1005-680JJT	HBLS1005-68NJ	68	±5%	1.2	180	10000
CI-B1005-820JJT	HBLS1005-82NJ	82	±5%	1.3	150	10000
CI-B1005-101JJT	HBLS1005-R10J RDC1.6	100	±5%	1.5	150	10000
